FL14

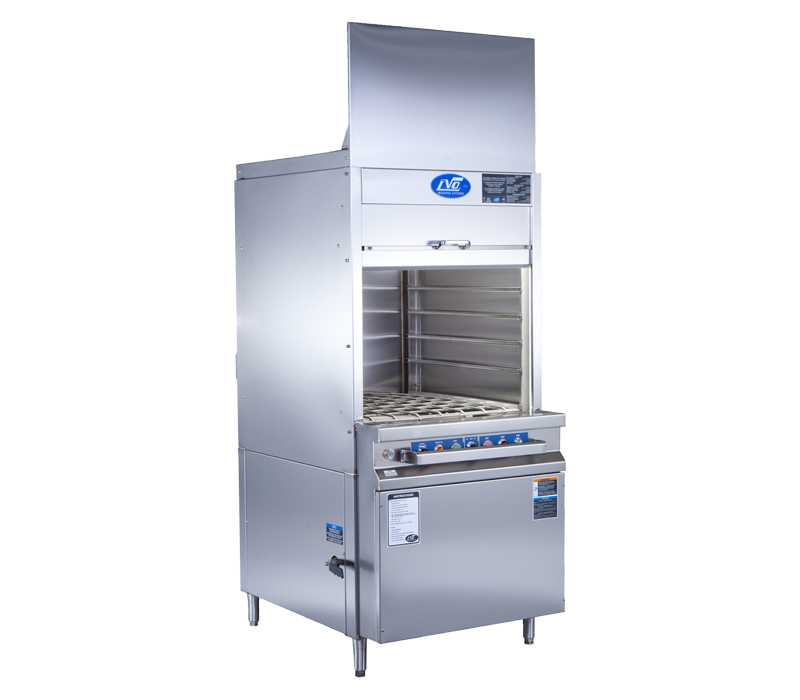

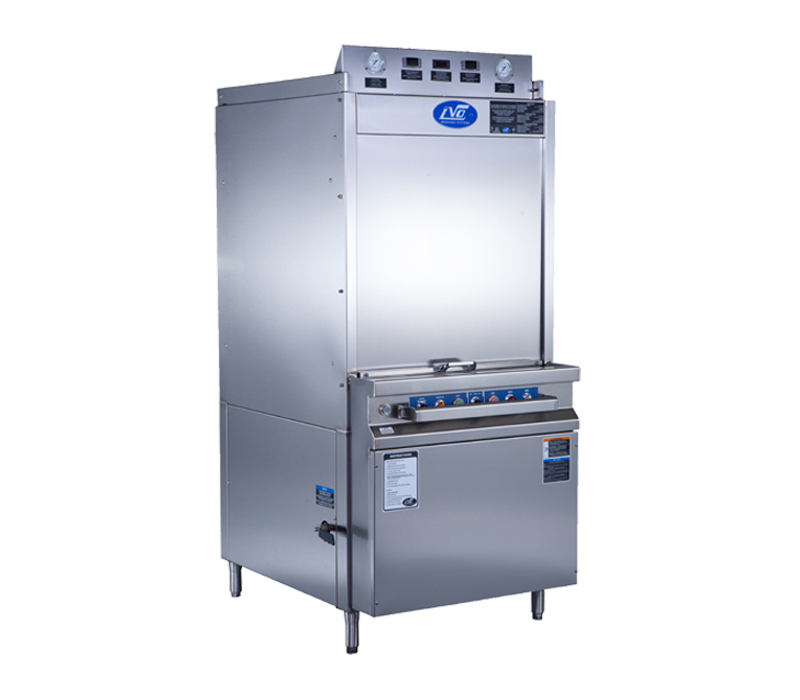

Model FL14 Front Load Washer

Our most popular model, the LVO FL14 cleans your pots, pans, bowls, or utensils with a powerful, high pressure wash.  With a 10 Horsepower pump and brass wash hubs, the two rotating stainless steel spray arms blast away soil for greater cleanliness, while a hot water rinse ensures proper sanitizing temperature.  Capable of washing up to 140 pans per hour, the FL14 is fully automatic and simple to operate.  The front load design allows for easy access to the wash chamber, while at the same time minimizing the amount of floor space required.

Specifications:

Wash Capacity: 14 Pans, Utensils or 140 Quart Mixing Bowl

Pump: 10 HP – 208, 230, or 460V, 60 cycle, 3 Phase – Recirculates Approximately 180 Gallons per Minute at 50-60 PSI

Timers: Three Preset Wash Times

Wash Tank: 40 Gallon Capacity – Electric, Gas, or Steam Heated

Cabinet: 14 and 12 Gauge Heavy Duty Stainless Steel Construction

Rinse Tank: Stainless Steel with a 9 KW electric booster heater to boost 140°F incoming water to 180°F-195°F sanitizing rinse water

ACCESSORIES:

Utility Racks: Stainless Steel Utility Racks are sturdy and reliable and are built to withstand the day to day operations

• Bun/Sheet Pan
• Cake Pan
• Utensil Basket w/hold-down lid
  *Special racks can be built upon customer request.

Power Venting: PVS-6 Variable Speed Fan quickly and efficiently removes excess steam from inside the washer

Resources:

Part Catalog

Brochure

Owner’s Manual

Installation Instructions

Daily Instructions
