CL10

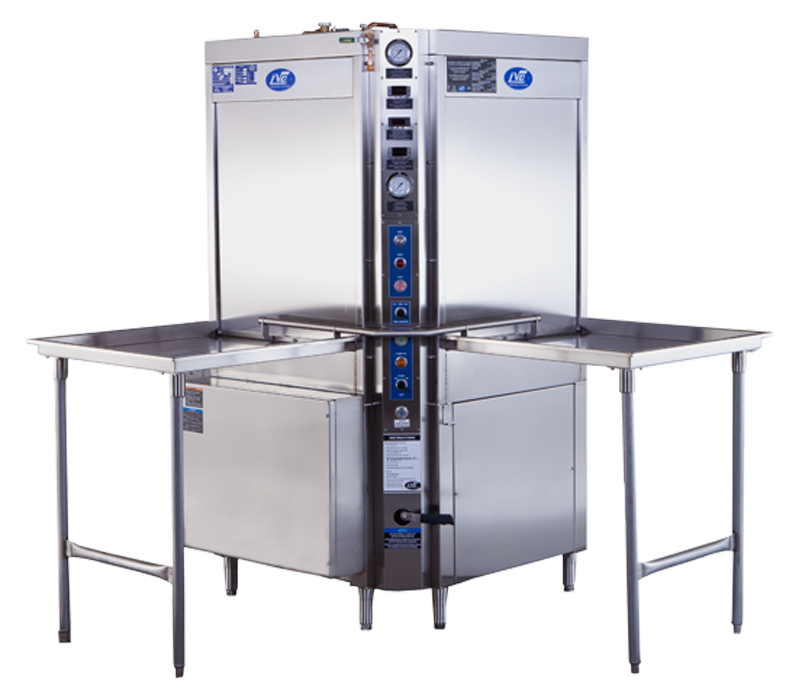

Model CL10 Corner Load Washer

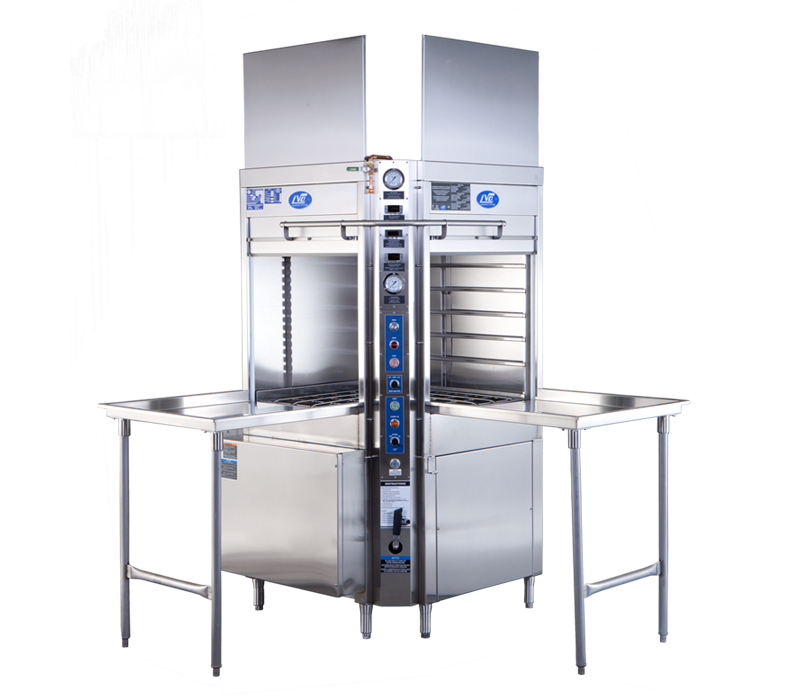

Easy to operate and capable of washing up to 100 pans per hour, the LVO CL10 cleans your pots, pans, bowls, or utensils with a powerful, high pressure wash.  With a 7 ½ Horsepower pump and brass wash hubs, the two rotating stainless steel spray arms blast away soil for greater cleanliness.  With its two doors, each with its own table, the CL10 allows for one side to be used for preparation of your soiled pans and the other for you clean pans to come out, minimizing the chance of cross contamination, while maximizing worker efficiency.  The L-shaped design permits the washer to be place in the corner, reducing the amount of floor space needed for operation.

Specifications:

Wash Capacity: 10 Pans, Utensils or 140 Quart Mixing Bowl

Pump: 7 ½ HP – 208, 230, or 460V, 60 cycle, 3 Phase – Recirculates Approximately 140 Gallons per Minute at 50-60 PSI

Timers: Three Preset Wash Times

Wash Tank: 30 Gallon Capacity – Electric, Gas, or Steam Heated

Cabinet: 14 and 12 Gauge Heavy Duty Stainless Steel Construction

Rinse Tank: Stainless Steel with a 9 KW electric booster heater to boost 140°F incoming water to 180°F-195°F sanitizing rinse water

ACCESSORIES:

Utility Racks: Stainless Steel Utility Racks are sturdy and reliable and are built to withstand the day to day operations

  • Bun/Sheet Pan
  • Cake Pan
  • Utensil Basket w/hold-down lid
    *Special racks can be built upon customer request.

Power Venting: PVS-6 Variable Speed Fan quickly and efficiently removes excess steam from inside the washer

Resources:

Brochure

Owner’s Manuals

Installation Instructions

Daily Instructions

ETL MarkNSF Mark
