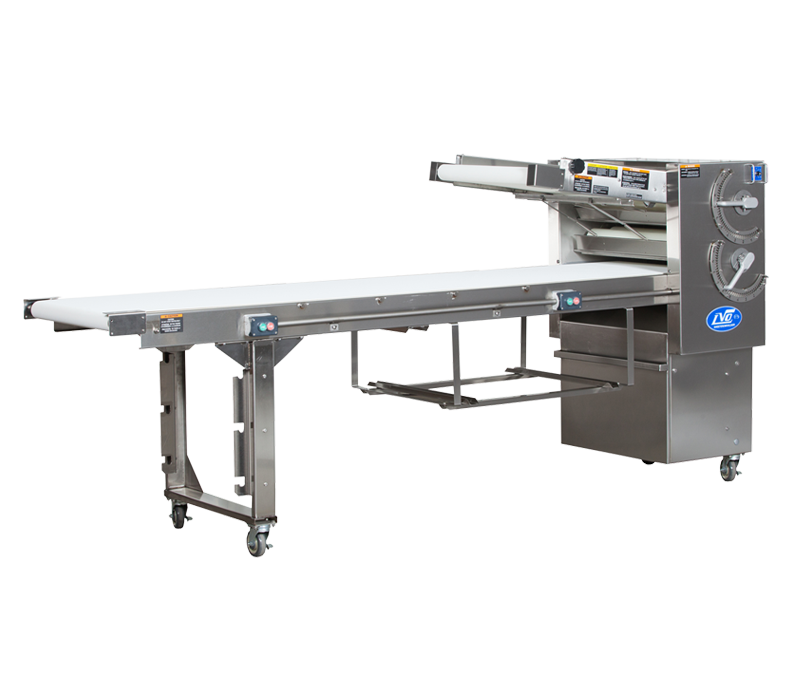

Model SM224 Production Table

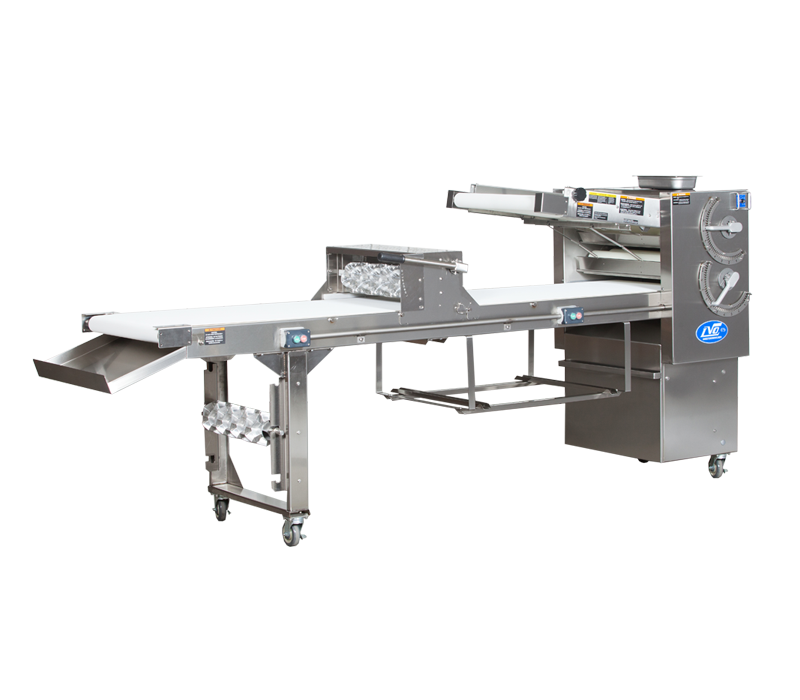

The LVO SM224 combines the features of a Production Table with that of a Bread Moulder into one compact, high efficiency machine.  The power infeed conveyor belt carries the dough to the sheeting rollers, where it is sheeted in two gradual stages.  For Bread Moulding, the dough passes to the heavy duty moulding carriage to make a variety of breads, hot dog rolls, and bread sticks.  Two curling chains and multiple pressure plate sizes are available.


Conveyor Belt Width: 24 Inches

Table Length*: 6, 9, 12, 15, or 18 Feet

Motor: 1 HP

Infeed: Power

Cabinet: 16, 14, and 12 Gauge Heavy Duty Stainless Steel Construction

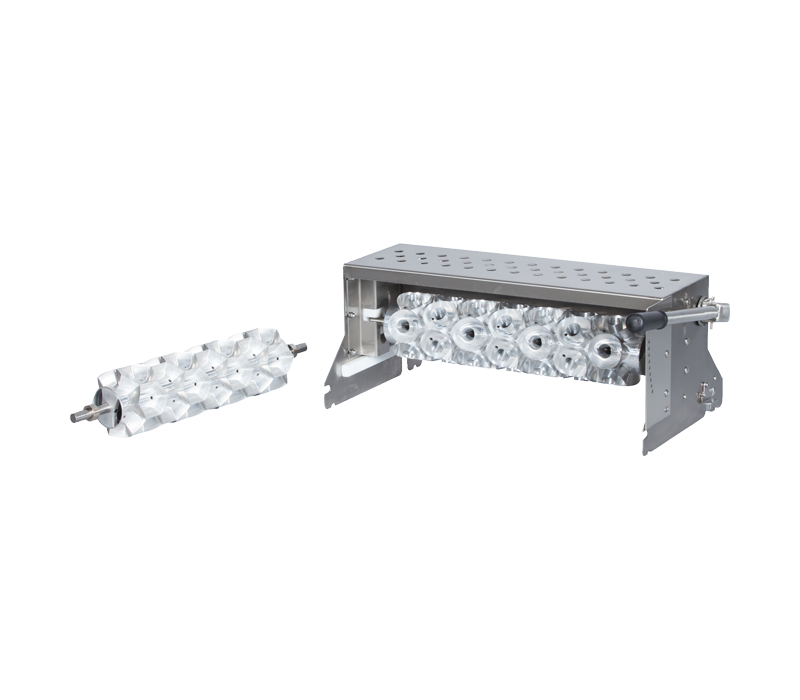

Cutter Carriage

Bread Moulding Carriage

  • Standard Pressure Plate sizes of 6″, 9″ & 12″
  • 14″, 16″, 18″, 20″, 22″, & Bolillo Pressure Plates also available upon request

Curling Chains: Two different weights available for bread moulding



Owner’s Manual

ETL MarkETL Sanitation Mark

*ETL Sanitation Listing available on 6 Foot & 9 Foot Tables Only
